Signature idenfication

After completing the matrix decomposition step and selecting a candidate optimal factorization rank, the matrix H can be visualized to explore the signatures, the signature quality can be assessed using a riverplot visualization, and the association of a signature with a biological or clinical variable can be inferred with a recovery analysis.

H Matrix sample exposure:

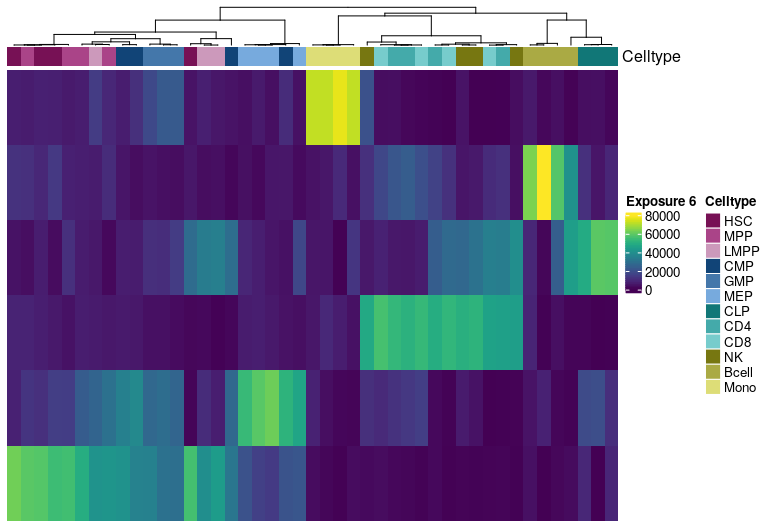

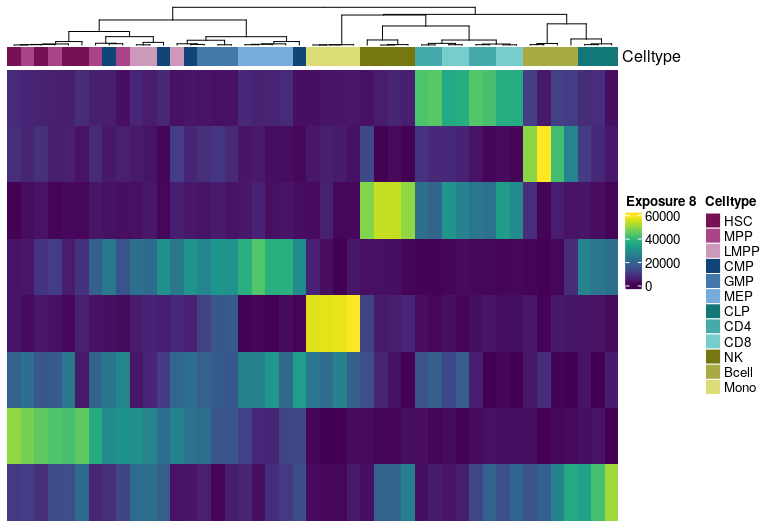

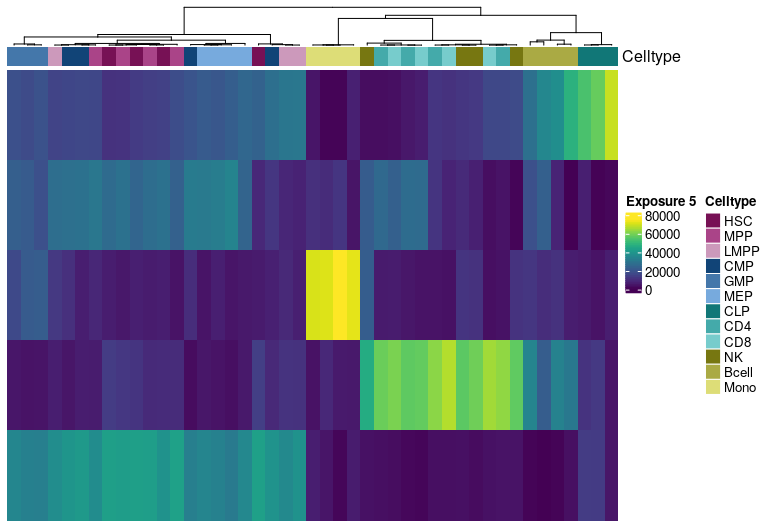

Visualize exposure of the samples to the decomposed signatures as a heatmap, for a selected factorization rank.

##----------------------------------------------------------------------------##
##                        H matrix heatmap annotation                         ##
##----------------------------------------------------------------------------##
#Annotation for H matrix heatmap
corces_rna_annot_tmp <- corces_rna_annot %>%
  mutate(Celltype = factor(Celltype, levels = c("HSC", "MPP", "LMPP",
                                                "CMP", "GMP", "MEP",
                                                "CLP", "CD4", "CD8",
                                                "NK", "Bcell", "Mono")))

type.colVector <- corces_rna_annot_tmp %>%
  select(Celltype, color) %>%
  arrange(Celltype) %>%
  distinct() %>%
  deframe()

type.colVector <- list(Celltype = type.colVector)

# Build Heatmap annotation
heat.anno <- HeatmapAnnotation(df  = corces_rna_annot_tmp[,"Celltype",drop=FALSE],
                               col = type.colVector,
                               show_annotation_name = TRUE, na_col = "white")

##----------------------------------------------------------------------------##
##              Generate H matrix heatmap, W normalized                       ##
##----------------------------------------------------------------------------##
ki <- 8
tmp.hmatrix <- HMatrix(rna_norm_nmf_exp, k = ki)
Heatmap(tmp.hmatrix,
        col = viridis(100),
        name = paste0("Exposure ", ki),
        clustering_distance_columns = 'pearson',
        show_column_dend = TRUE,
        heatmap_legend_param =
          list(color_bar = "continuous", legend_height=unit(2, "cm")),
        top_annotation = heat.anno,
        show_column_names = FALSE,
        show_row_names = FALSE,
        cluster_rows = FALSE)

Click for Answer

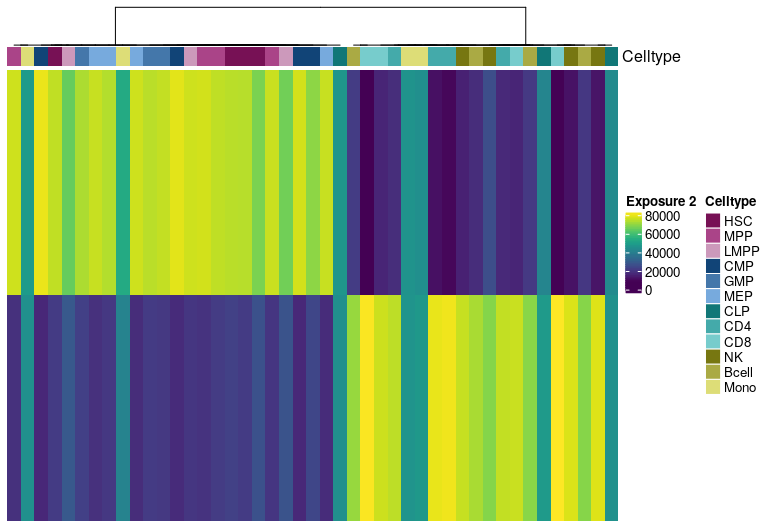

H matrix for k= 2

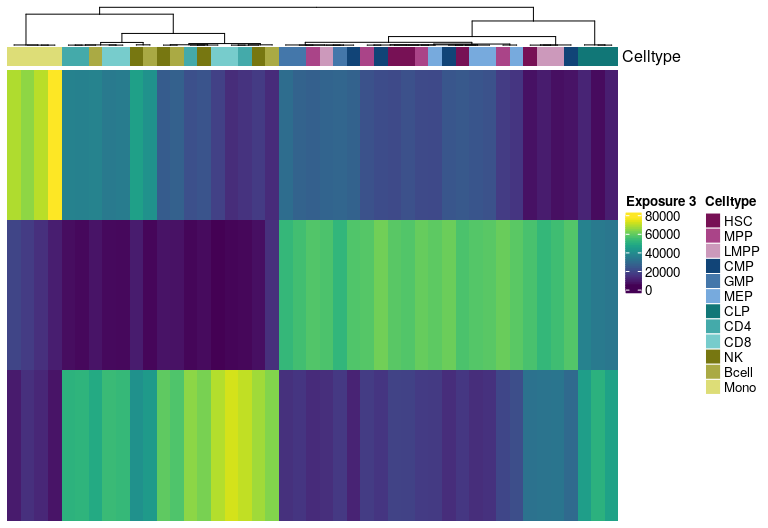

H matrix for k= 3

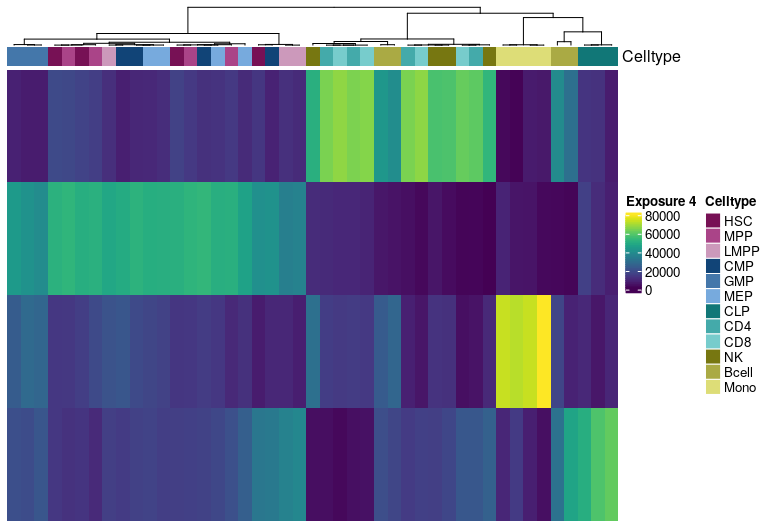

H matrix for k= 4

H matrix for k= 5

H matrix for k= 6

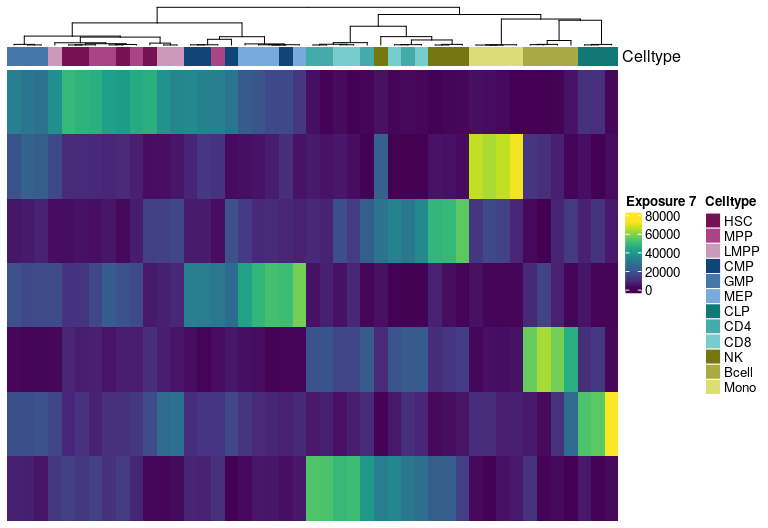

H matrix for k= 7

H matrix for k= 8

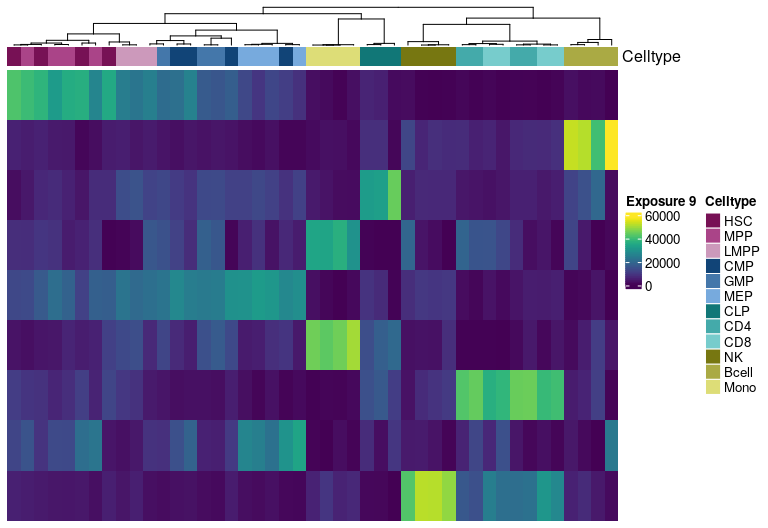

H matrix for k= 9

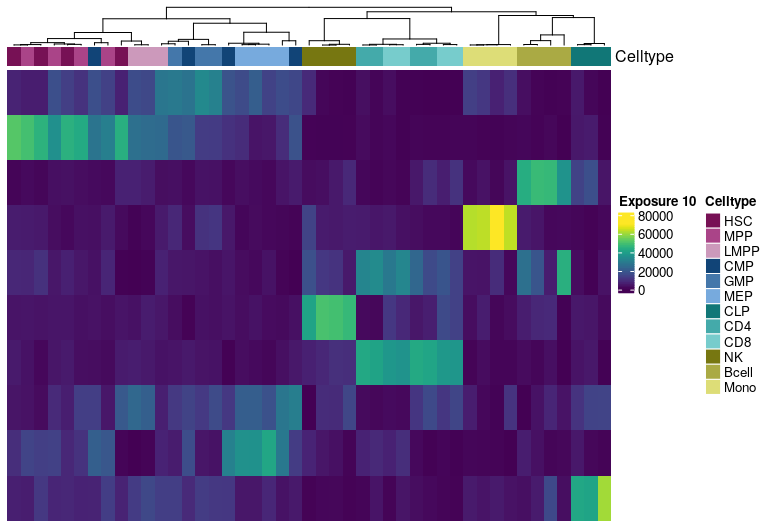

H matrix for k= 10

Signature estability - Riverplot visualization

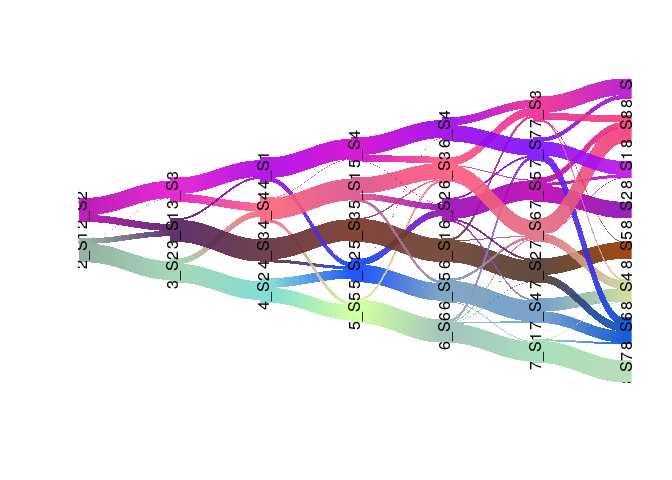

Riverplot representation of the extracted signatures at different factorization ranks. The nodes represent the signatures, the edge strength encodes cosine similarity between signatures linked by the edges.

river <- generateRiverplot(rna_norm_nmf_exp, ranks = 2:8)
plot(river, plot_area=1, yscale=0.6, nodewidth=0.5)

Click for Answer

Cluster identification - UMAP

A common practice to identify clusters of samples in single-cell and bulk omics datasets is to perform a dimensionality reduction step with PCA, followed by tSNE or UMAP. The resulting matrix H from the NMF decomposition can be used in the same fashion.

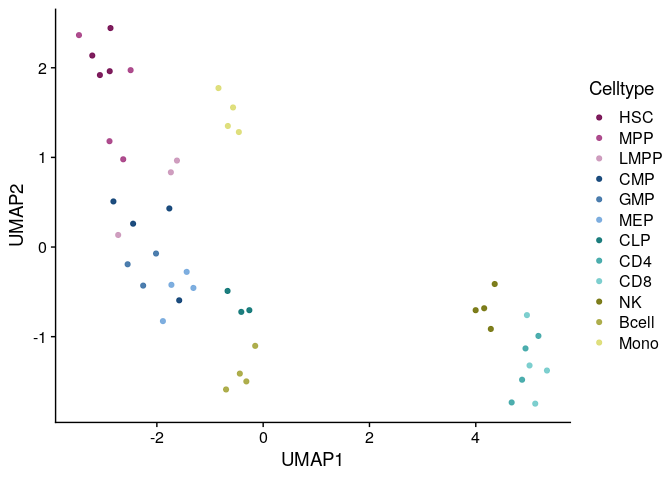

Cluster identification by running UMAP on the matrix H:

##----------------------------------------------------------------------------##
##                         UMAP H matrix                                      ##
##----------------------------------------------------------------------------##
hmatrix_norm <- HMatrix(rna_norm_nmf_exp, k = 8)
umapView <- umap(t(hmatrix_norm))


umapView_df <- as.data.frame(umapView$layout)
colnames(umapView_df) <- c("UMAP1", "UMAP2")

type_colVector <- corces_rna_annot %>%
  dplyr::select(Celltype, color) %>%
  arrange(Celltype) %>%
  distinct() %>%
  deframe()


umapView_df %>%
  rownames_to_column("sampleID") %>%
  left_join(corces_rna_annot, by = "sampleID") %>%
  mutate(Celltype = factor(Celltype, levels = c("HSC", "MPP", "LMPP",
                                                "CMP", "GMP", "MEP",
                                                "CLP", "CD4", "CD8",
                                                "NK", "Bcell", "Mono"))) %>%
  ggplot(aes(x=UMAP1, y=UMAP2, color = Celltype)) +
  geom_point(size = 1.5, alpha = 0.95) +
  scale_color_manual(values = type_colVector) +
  theme_cowplot()

Click for Answer

Association of signatures to biological variables

One of the most important steps in the identification of molecular signatures, is to find the association of a candidate signature with know biological or clinical variables. In ButchR, it is possible to generate a recovery plot which intuitively shows the degree of association between all the signatures for one factorization rank and one known biological variable.

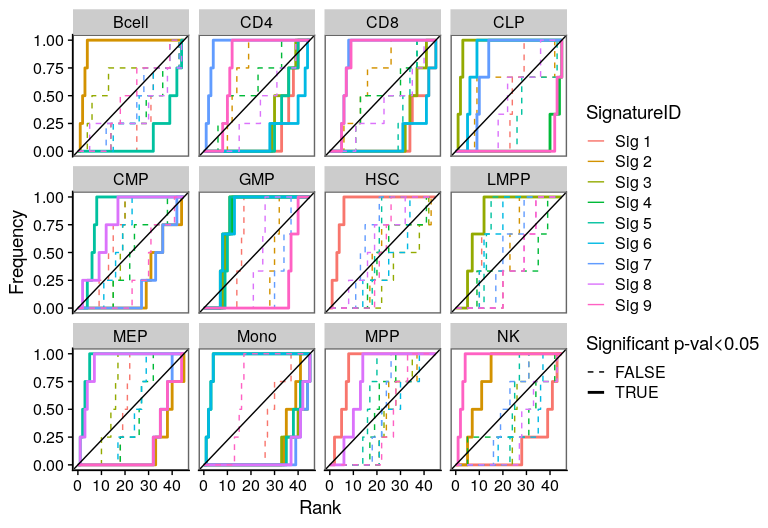

Make a recovery plot showing the association of the NMF signatures (for a selected factorization rank) to the "Celltype" variable:

##----------------------------------------------------------------------------##
##                               Recovery plots                               ##
##----------------------------------------------------------------------------##
ki <- 8
tmp.hmatrix <- HMatrix(rna_norm_nmf_exp, k = ki)
ButchR::recovery_plot(tmp.hmatrix, corces_rna_annot$Celltype)

Click for Answer

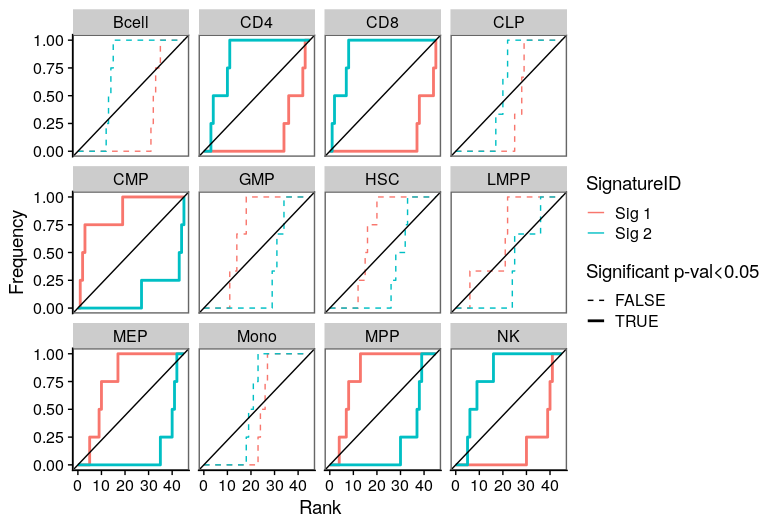

Recovery plots for k= 2

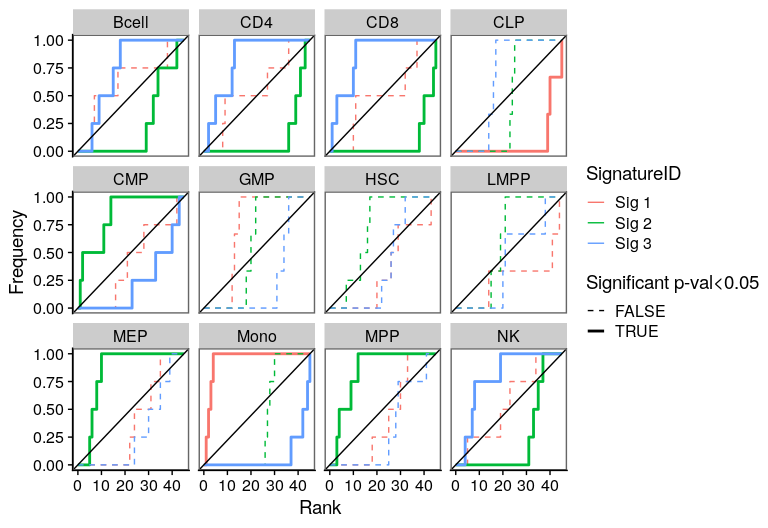

Recovery plots for k= 3

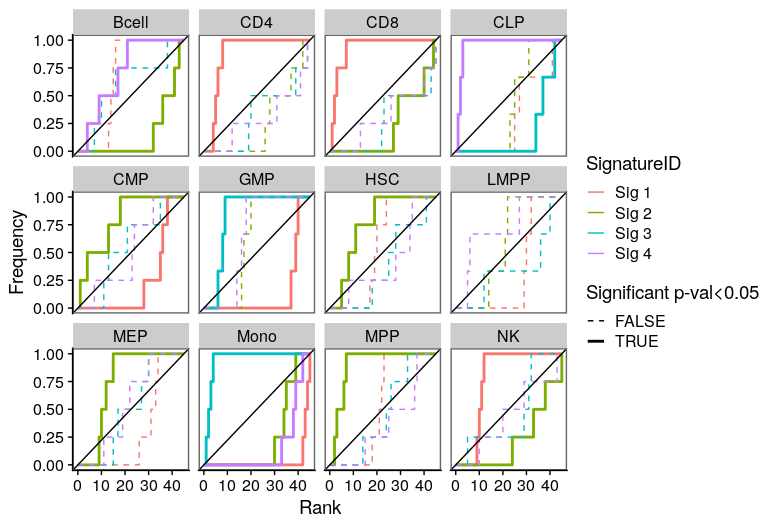

Recovery plots for k= 4

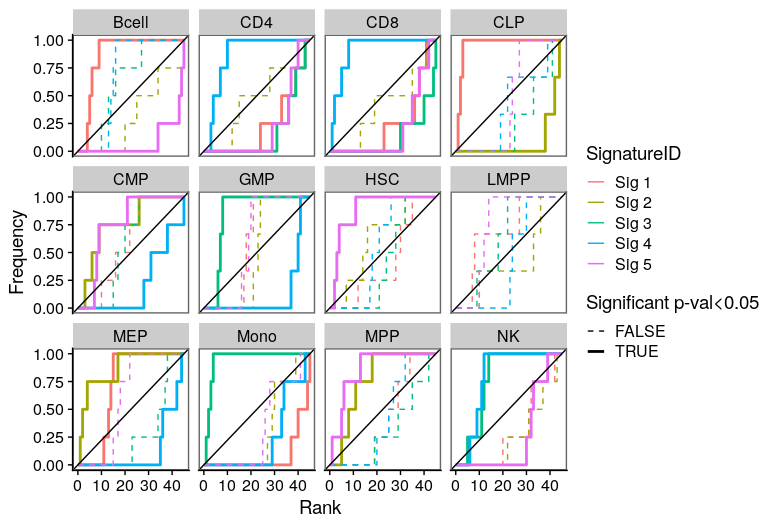

Recovery plots for k= 5

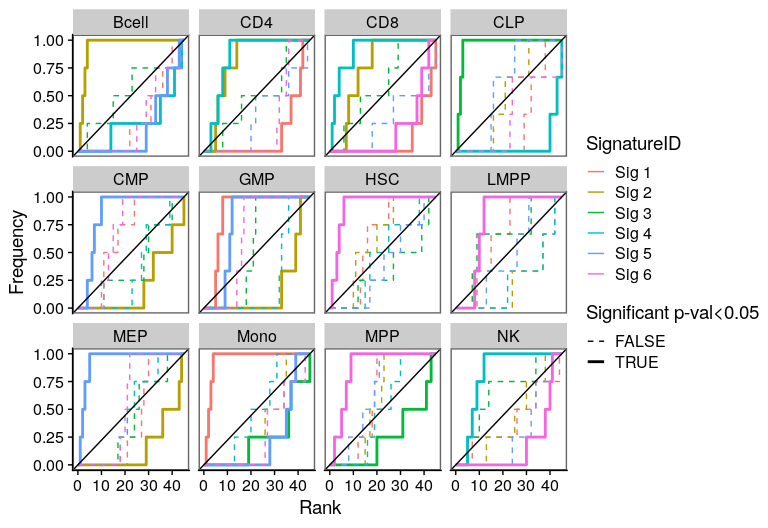

Recovery plots for k= 6

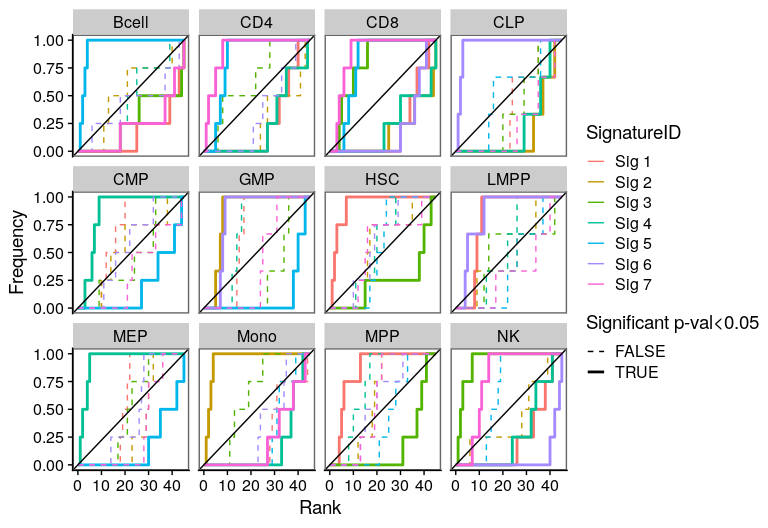

Recovery plots for k= 7

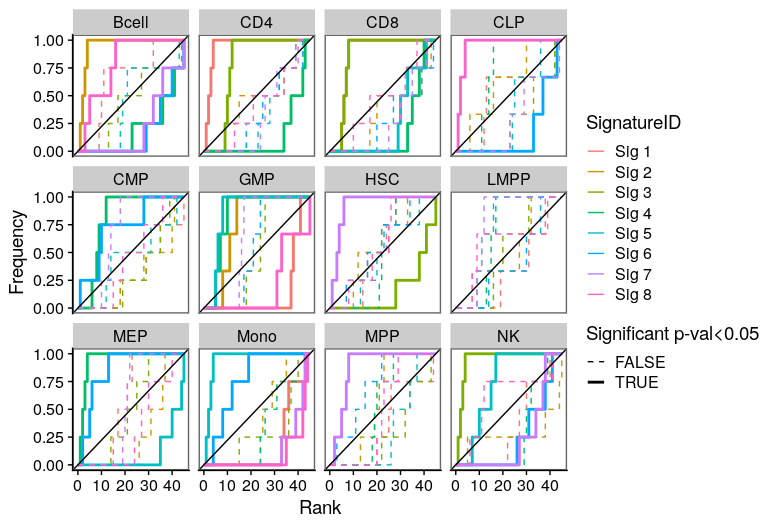

Recovery plots for k= 8

Recovery plots for k= 9

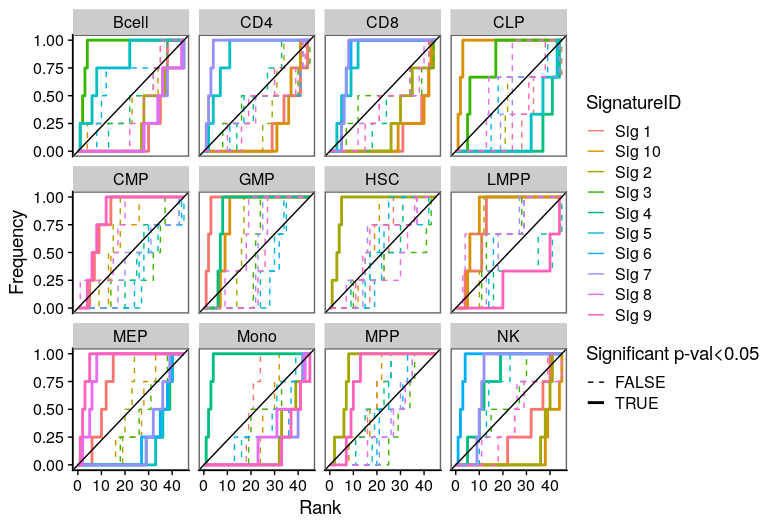

Recovery plots for k= 10
